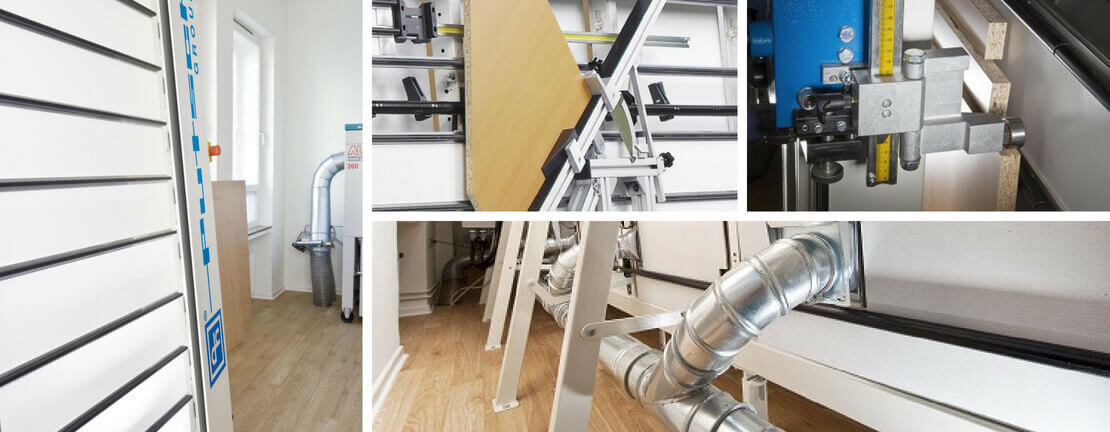

Options and Accessories

To enhance the performance, ease of use and adaptability of our SVP Series Vertical Panel Saws, we also offer a full assortment of options and accessories. Consult your Putsch® representative or authorized Putsch® dealer for which option(s) are best suited for your needs.

"Posi-System" Motorized Positioning System

Exclusively for the SVP 320 and 420 Series, the Posi-System is our generation of digital measuring that features a motorized vertical stop and horizontal saw head positioning, eliminating the need to manually set the measuring stops, thus increasing cut accuracy and consistency.

Putsch® Label Optimizer

Putsch® Label Optimizer offers panel optimization and labeling to any SVP Series vertical panel saw. Using a cut quote input into the touchscreen mounted to the operator control, or from a desktop computer, this system offers an optimized cut plan for the operator to follow for maximum part yield. The provided label printer helps the operator keep parts organized. Not available for SVP 420 A/T and SVP 980 A/T models.

Putsch® TRK Dust Extraction System

Mounted on the right side of the support panel, the system continuously vacuums dust into the extraction filter while the saw is in operation. When connected to a separate dust collector, the Putsch® TRK-value is less than 1 ppm (2 mg/m3).

Putsch® ECO Dust Extraction System

Designed with ultra-fine dust in mind, the system consists of a series of high airflow vacuum channels within the support panel that feature automatic pneumatically controlled valves. Perfect for plaster board, gypsum and drywall.

Retractable Middle Support Rail

Horizontal rail extends nearly the length of the machine allowing the operator to cut small material at an ergonomic height. An optional second rail can be added to offer a lower working height for difficult-to-handle pieces.

Inclined-Cut Support Arm

Assists cutting smaller pieces in angular shapes. This attachment can be installed in a few simple steps and can be adjusted in 5° increments with a patented 22.5° setting.

V-grooving Kit with Adjustable Depth Stop

Converting a machine for v-grooving applications is simple with this kit. It includes an adjustable depth stop and a pressure shoe that is adapted for the larger width of a cutter attachment (not included with kit). 90°, 135° and U-profile cutters are available at additional cost.

Digital Measuring Displays (horizontal and/or vertical)

Easy-to-read digital displays that accurately reflect units of measure. Available in standard and metric displays.

Horizontal Strip Cutting Jig

This simple device allows you to repeatedly make accurate horizontal cuts.

Sliding Support Brace

This sliding support holds narrow materials securely and at a safer working height.



For more information, consult our SVP Series Vertical Panel Saws catalog in our Downloads page, or Contact Us.
