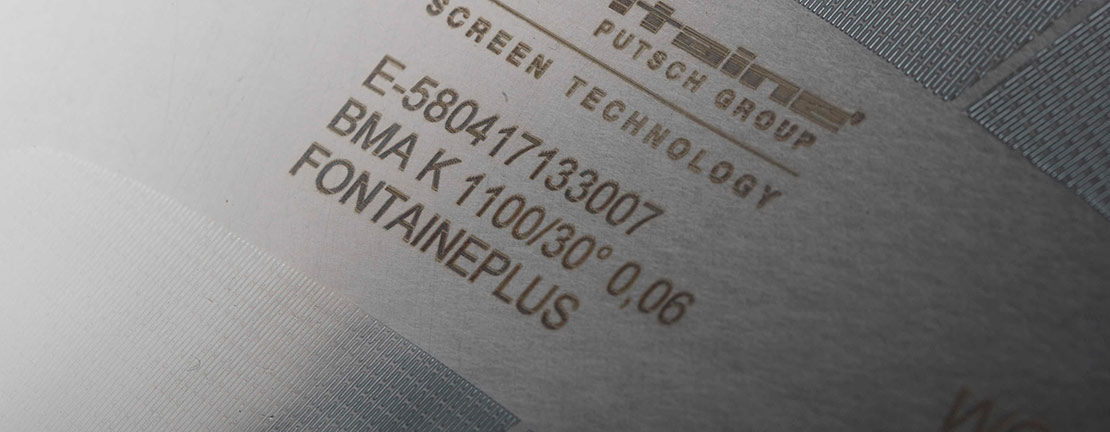

Nickel + Chrome-plated Screens for Continuous Centrifuges

Putsch® continuous centrifuge screens are crafted from 99.9% pure nickel and finished with a durable hard chrome plating. This tough surface dramatically reduces wear, extending the life of the screen. The slots are engineered with a conical design, which helps boost throughput while minimizing clogging. We fine-tune the slot characteristics to support low molasses purities, delivering performance you can count on.

No matter the centrifuge manufacturer, our screens can be customized to fit your exact specs and are available in virtually any size. Choose from two high-performance options: Putsch® STANDARD and Putsch® MAX.

Details

Slot size Thickness Open Area in %
Fontaine Standard0.0016×0.066" (0.04×1.68mm)0.011-0.012" (0.28-0.30mm)4.2
Fontaine Standard0.0016×0.091" (0.04×2.30mm)0.011-0.012" (0.28-0.30mm)4.5
Fontaine Standard0.0016×0.110" (0.04×2.80mm)0.011-0.012" (0.28-0.30mm)7
Fontaine Standard0.002×0.066" (0.06×1.68mm)0.011-0.012" (0.28-0.30mm)6.5
Fontaine Standard0.002×0.087" (0.06×2.20mm)0.011-0.012" (0.28-0.30mm)7.5
Fontaine Standard0.002×0.110" (0.06×2.80mm)0.011×0.012" (0.28×0.30mm)10
Fontaine Standard0.004×0.067" (0.09×1.70mm)0.011-0.012" (0.28-0.30mm)9.5
Fontaine Standard0.004×0.091" (0.09×2.30mm)0.011-0.012" (0.28-0.30mm)10
Fontaine Standard0.004×0.110" (0.09×2.80mm)0.011-0.012" (0.28-0.30mm)13
Fontaine MAX0.0016×0.091" (0.04×2.30mm)0.013-0.014" (0.33-0.35mm)10
Fontaine MAX0.002×0.087" (0.06×2.20mm)0.013-0.014" (0.33-0.35mm)15
Fontaine MAX0.004×0.091" (0.09×2.30mm)0.013-0.014" (0.33-0.35mm)22
