Putsch® SVP 320/420 Series

The Putsch® SVP 320/420 Series is the perfect combination of compact design and premium features. Unlike the scoring systems found on competing saws in which the scoring blade turned by a belt from the main motor, the Putsch® SVP 320/420 uses an independent 1/4 hp scoring motor for greater scoring accuracy and reliability. The scoring motor automatically activates when the saw blade is engaged and will disengage when the main blade is not in use.

Independent scoring motor
Independent scoring motor

The saw carriage rides on linear guides for smoother travel on the saw beam. The electrical cables leading are neatly carried and protected inside within an energy chain, instead of being zip-tied to the dust hose. These premium touches along with the ergonomically designed saw head, offer tremendous value for a reasonable price. Both the SVP 320 and SVP 420 are available in either manual or automatic movement.

For even more cutting flexibility, Putsch® offers three Special Editions of the SVP 420 Series:

The SVP 420 CS
Uses lifting clamps built into the saw grid that allow the operator to lift the panel to trim the bottom edge without having to rotate it first.
The SVP 420 ALU
Dual-tool saw head that contains both a 200 mm saw blade AND v-grooving cutter for a seamless transition from cutting and grooving. This time-saving design eliminates the need to stop production to switch from a blade to a cutter.
NEW! The SVP 420 A/T

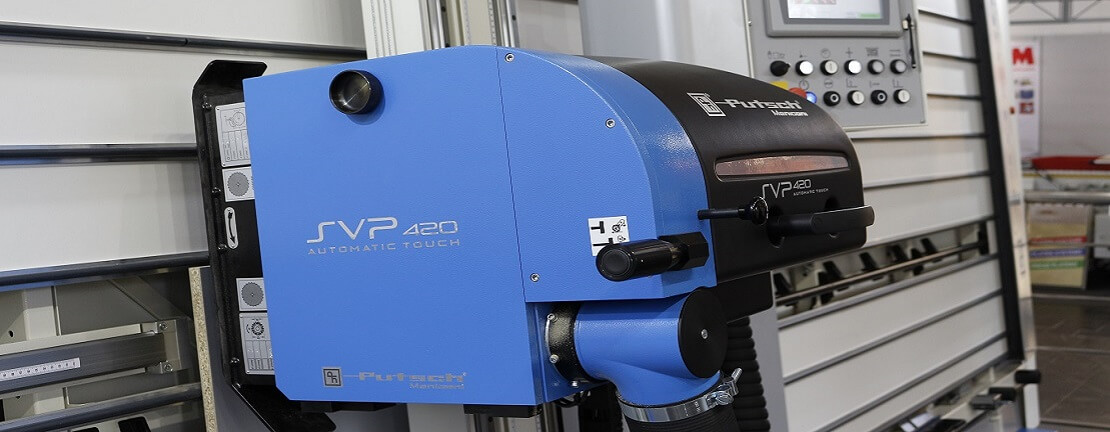

Features independent motorized scoring, linear guides on the saw mast and automatic horizontal and vertical movement that is operated via a 9" color touch screen control. Programming system holds up to 600 cutting programs for fast operator recall. New "Posi-System" automatically positions the vertical stop for cross-cuts and saw head for horizontal rip cuts.


Technical Specifications

Model Max Cut Height Max Trimming Height Max Cut Length Max Cut Depth Blade Diameter Motor HP Blade Speed (RPM)

SVP 320

SVP 320 Auto

6' 3"
1900 mm
5' 6"
1700 mm
10' 6"
3200 mm
2.36"
60 mm
9.84"
250 mm

5 hp

6 hp

5300

SVP 420

SVP 420 Auto

7' 2"
2200 mm
6' 7"
2080 mm
13' 9"
4200 mm
2.36"
60 mm
9.84"
250 mm

5 hp

6 hp

5300
SVP 420 CS 7' 2"
2200 mm
6' 7"
2080 mm
13' 9"
4200 mm
2.36"
60 mm
9.84"
250 mm
5 hp 5300
SVP 420 A/T 7' 2"
2200 mm
6' 7"
2080 mm
13' 9"
4200 mm
2.36"
60 mm
9.84"
250 mm
6 hp

5300

SVP 420 ALU 7' 2"
2200 mm
6' 7"
2080 mm
13' 9"
4200 mm
1"
25 mm
7.75"
200 mm
5 hp 5300
