Dedicated software for drilling optimization.

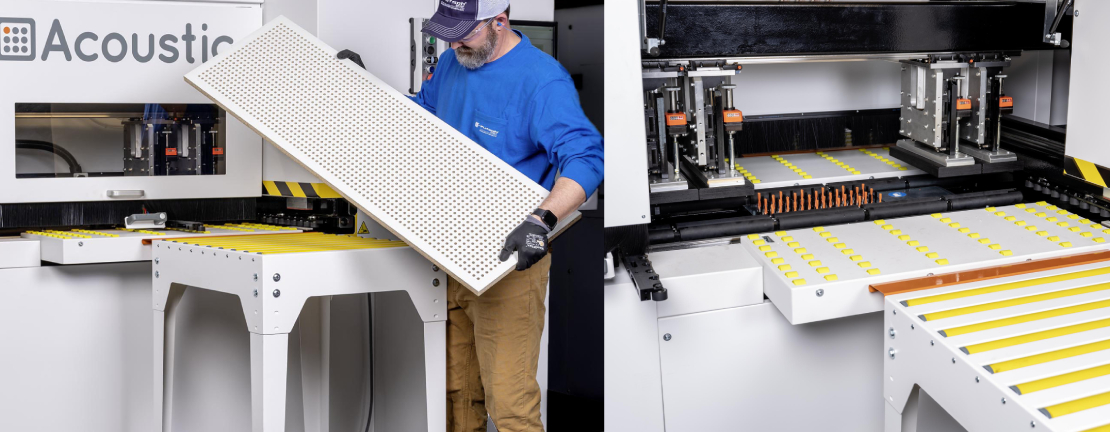

The Acoustic is the ideal CNC boring machine that produces high quality acoustic and sound-absorbing panels. This machine can create several different types of acoustic wood by drilling. Operating at high speed, the Acoustic is able to drill 55 holes in 4 seconds, executing precise work while operating at an efficient level.

The Acoustic is a dedicated machine for the execution of acoustic and sound absorbing panels. There are easy to change customized heads with a 55 or 119 drill index that are available depending on your needs.

Test 55

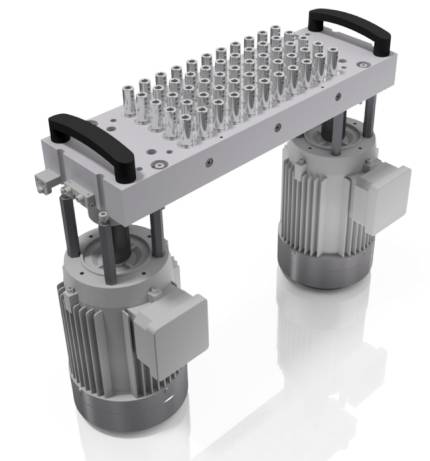

Testa 55

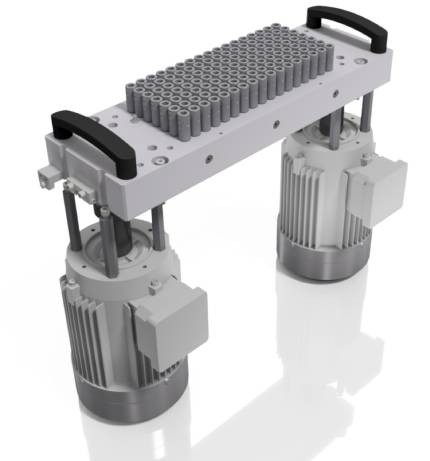

Testa 119
Testa 119

Technical Specs

Feature Specs
Dimensions 2,615 mm x 1,640 mm x 1,890 mm
(102.9 in x 64.6 in x 74.4 in)
Weight 1150 Kg (approx. 2,535 lbs.)
Motors 2 motors with a power of 2 kw
Dust extraction Diameter 120 mm (4.72")
Notes: 2mm bits for the execution of micro holes
  Equipped with clamps that do not damage the panel

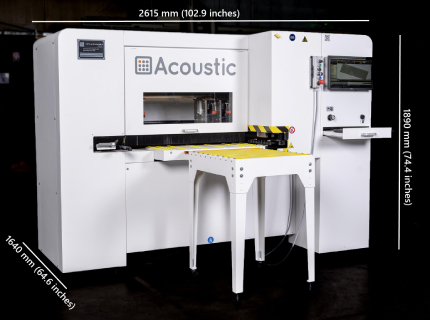

Acoustic Machine Station with dimensions
Acoustic CNC Boring Machine Station with dimension labels
